Name: 10mm Dia., 2mm Thick, VIS 0° Coated, λ/4 Fused Silica Window
Brand: TECHSPEC
SKU: 18-322
Price: €110,00

Abbe Number (v_d):

67.8

Bevel:

Protective as needed

Clear Aperture (%):

Clear Aperture CA (mm):

9.00

Diameter (mm):

10.00 +0.00/-0.10

Thickness (mm):

2.00 ±0.10

Coating:

VIS 0° (425-675nm)

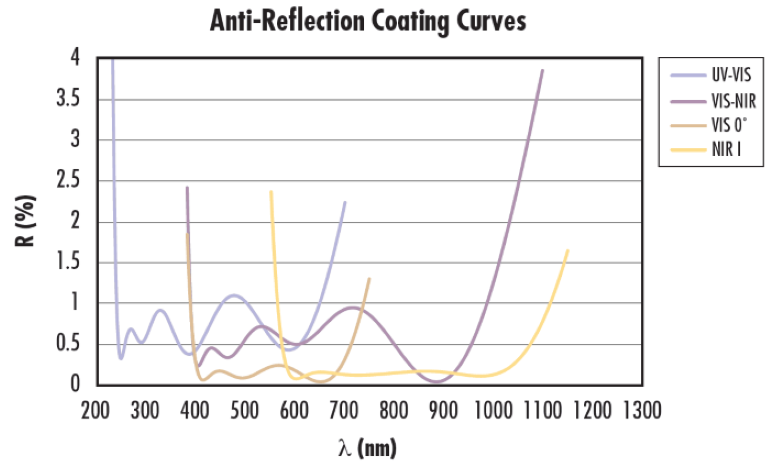

Coating Specification:

R_avg ≤0.4% @ 425 - 675nm

Coefficient of Thermal Expansion CTE (10^-6/°C):

0.52 (+5 to +35°C)
0.57 (0 to +200°C)
0.48 (-100 to +200°C)

Density (g/cm³):

2.20

Edges:

Fine Ground

Index of Refraction n_d:

1.458

Knoop Hardness (kg/mm²):

522

Parallelism (arcmin):

Poisson's Ratio:

0.16

Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More

Fused Silica (Corning 7980)

Surface Quality:

40-20

Transmitted Wavefront, P-V:

λ/4

Type:

Protective Window

Typical Energy Density Limit:

5 J/cm² @ 532nm, 10ns

Wavelength Range (nm):

425 - 675

Young's Modulus (GPa):

5 J/cm² @ 532nm, 10ns

Regulatory Compliance

RoHS 2015:

Compliant

Reach 224:

Compliant

Certificate of Conformance:

View

Product Family Description

Available Uncoated or BBAR Coated for UV, Visible, and NIR
Ideal for Imaging Applications
Standard Diameter Sizes from 10 to 75mm
1λ or λ/10 UV Fused Silica Windows Also Available

TECHSPEC® λ/4 UV Fused Silica Windows are manufactured with 40-20 surface quality and λ/4 transmitted wavefront error specifications, making them ideal for imaging applications. Featuring UV fused silica substrates, these windows provide high transmission from the ultraviolet (UV) through the visible and near-infrared (NIR). Broadband anti-reflection (BBAR) coating options are available to minimize reflection losses and increase transmission. TECHSPEC λ/4 UV Fused Silica Windows are used in optical imaging applications, in low to medium powered laser applications, and as protective windows, especially in applications requiring transmission of UV light.
