All Products / Test Targets / Image Analysis & Stage Micrometers

Image Analysis & Stage Micrometers

Custom and
Volume Manufacturing
Learn More

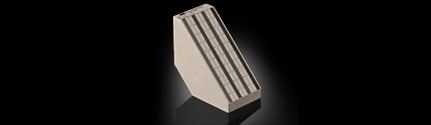

DOF 5-15 Depth of Field Target DOF 5-15 Depth of Field Target
Top Seller
  • Test Depth of Field of Your Imaging System
  • Effective Measurement Eliminates the Need for Calculations
Dot and Square Calibration Target Dot and Square Calibration Target
  • Designed for Measurement Calibration
  • Positive or Negative Chrome Patterns on Glass
  • High Contrast Target for Imaging with Elements from 0.5 to 10mm
  • NIST Traceability Certificate Included
Dual Axis Linear Scale Stage Micrometer Dual Axis Linear Scale Stage Micrometer
  • Dual Axis Design
  • English and Metric Scales
  • NIST Certified Version Available
EO Machine Vision Stage Micrometers EO Machine Vision Stage Micrometers
  • NIST Traceable Certificate of Accuracy Included
  • Ideal for Quick Calibration of Vision Systems
  • Durable Storage Case Included
EO Telecentricity Target EO Telecentricity Target
  • Critical Tool for Measurement Vision Systems
  • Calibrates Any Type of Lens
  • Covers Large Range of Magnifications
Image Analysis Micrometers Image Analysis Micrometers
  • Designed for Morphological Calibration and Measurement
  • 8 Test Plates of Various Patterns
  • NIST Certified Version Available
Kodak Imaging Chart Kodak Imaging Chart
  • Over 18 Test Patterns
  • 8 ½" x 11" Film
Micro Line and Dot Standard Stage Micrometer Micro Line and Dot Standard Stage Micrometer
  • New Opal Version Available
  • Calibrate Pixel Dithering
  • Lines and Dot Range from 2μm to 100μm
Multi-Function Calibration Target for Low Magnification Systems Multi-Function Calibration Target for Low Magnification Systems
  • Calibrates Systems from 0.08X to 4X
  • Measures MTF, DOF, Resolution, FOV, and Distortion
  • NIST Certificate of Accuracy Included
Multi-Function High Magnification Calibration Targets Multi-Function High Magnification Calibration Targets
  • Designed for Measurement Calibration; Ideal for Microscopes and Machine Vision Systems
  • Includes Ronchi Rulings, Concentric Circles, Square Grids, and a Linear Microscale
  • Two Targets Available for Different Magnifications
  • NIST Certificate of Accuracy Included
Multi-Grid Standard Stage Micrometer Multi-Grid Standard Stage Micrometer
  • Calibrate Distortion in High Magnification Systems
White Ivory Glass Reticle Targets White Ivory Glass Reticle Targets
  • Crossline, Index Grid, or Concenctric Circle Reticles
  • White Ivory Soda Lime Glass Substrates
  • 27mm Diameter Reticles
Positioning Stages with Digital Micrometers Positioning Stages with Digital Micrometers
  • 0.001mm Resolution Directly Readable Micrometer
  • Readout in Inches or Millimeters
  • Available with English or Metric Mounting Holes
Reticle Calibration Stage Micrometer Reticle Calibration Stage Micrometer
  • Features a Series of "H" Shaped Fiducial Images
  • Image Sizes from 0.1 to 20mm
  • Available with NIST Traceable Data
Stage Micrometers Stage Micrometers
  • Reticle Scales Centered on Microscope Slides
  • Designed for Routine Calibration
  • 1 x 3" Slide Sizes
Featured Resources
 Application Note
Testing and Targets
Testing and Targets

View all Resources Related to Image Analysis & Stage Micrometers

Image Analysis & Stage Micrometers Test Targets are used to evaluate or calibrate an image system's performance by measuring image quality standards such as resolution, contrast, or depth of field. Image Analysis & Stage Micrometers Test Targets detail a range of shapes or patterns that measure the accuracy of an imaging system by viewing them with an imaging lens. Image Analysis & Stage Micrometers Test Targets effectively determine the capabilities of an imaging system, allowing for accurate certification of performance as well as for establishing baseline standards for multiple systems working together.

×
