Name: Optotune Low Dispersion, VIS Coated, Electrically Focus Tunable Lens | EL-10-30-TC-VIS-12D
Brand: Optotune
SKU: 34-970
Price: €495,00

Optotune Low Dispersion, VIS Coated, Electrically Focus Tunable Lens | EL-10-30-TC-VIS-12D

Low Dispersion Polymer

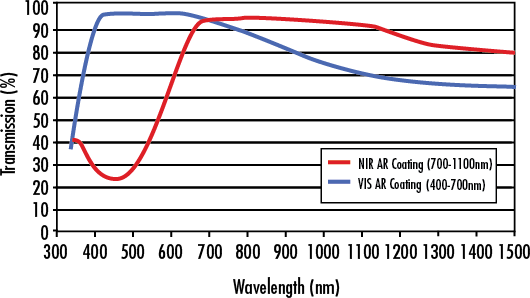

Coating:

BBAR (400-700nm)

Type:

Specialty Lens

Wavelength Range (nm):

400 - 700

Abbe Number (v_d):

100.00

Clear Aperture CA (mm):

10.0

Current (mA):

0 - 250, 400 abs. max

Damage Threshold, CW:

10 kW/cm² @ 1064nm

Focus Range:

+8.3 to +20 diopter
+55 to +120mm

Index of Refraction n_d:

1.300

Lifecycles:

>1,000,000,000

Model Number:

EL-10-30-TC-VIS-12D

Outer Diameter (mm):

30.0

Power Consumption (W):

0 - 0.9 (0 - 2 abs. max)

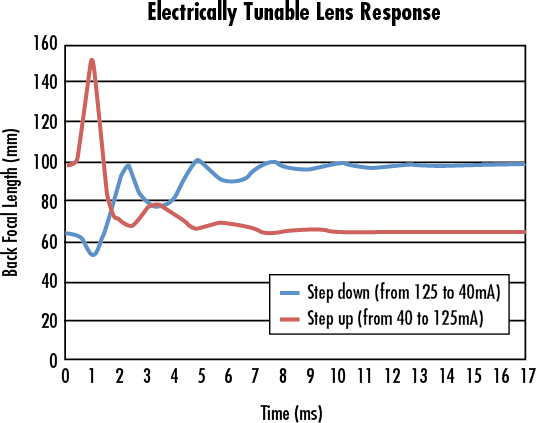

Response Time (ms):

2.5 (10%-90% step)

Thickness (mm):

10.70

Transmitted Wavefront Error, RMS:

Vertical: 0.2λ @ 525nm
Horizontal: 0.5λ @ 525nm

10 kW/cm² @ 1064nm

Regulatory Compliance

RoHS:

Compliant

Certificate of Conformance:

View

Product Family Description

Continuous Focusability
Tuning Range from 50mm to 120mm
Low Dispersion (Abbe Number V_d = 100)
Optotune Focus Tunable Lenses 10mm Clear Aperture Hirose Connector Also Available

Optotune Focus Tunable Lenses 10mm Clear Aperture FPC Connector offer a single-lens solution for focus and zoom objectives. Applying a control current to each compact, plano-convex lens changes their radius. Electrical manipulation of the radius allows for a focal range of +50 to +120mm, providing an adjustable focal length for a variety of purposes and negating the need for a multi-lens system. The cover glasses are available with VIS or NIR coating.

These tunable lenses can replace the functionality of a complete lens kit in laboratory settings, offering the on-demand adaptability needed to avoid the complex mechanical manipulation associated with a multi-lens system. Ideal for researchers and OEMs alike, Focus-Tunable Lenses offer continuous focusability over a specific focal range, allowing the user to custom-tune the lenses for optimum performance. Available in a variety of coating options, the focal adaptability of the Optotune Focus Tunable Lenses 10mm Clear Aperture FPC Connector makes them ideal for a range of applications where versatility is preferred.
