Benchtop System

New

Stainless Steel Optical Mounting Posts

English or Metric Versions Options Available
Wide Variety of Lengths Available from 25.4 to 304.8mm (1” to 12").
Removable Top and Bottom Set Screws Available

Clearance

English Stainless Steel Mounting Posts

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

Male 8-32 or ¼-20 Stud, Female ¼-20 Base
Posts Include Interchangeable Male Stud and Removable Base S.H.S.S.
Available in Variety of Lengths
Metric Versions Also Available

Clearance

Metric Stainless Steel Mounting Posts

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

Male M4 x 0.7 or M6 x 1.0 Stud, Female M6 x1.0 Base
Posts Include Interchangeable Male Stud and Removable Base S.H.S.S.
Available in Variety of Lengths
English Versions Also Available

Pedestal Posts and Accessories

1” Diameter Posts with Metric and English Mounting Hole Options
Stainless Steel Construction for High Stability
0.5”- 4.0” Heights Available
Refer to the Technical Information Tab to Find the Right Adapter for your Optical Mount and Application

Kinematic Magnetic Base Plates

Common 25.4mm (1") Platform Height
Removable Top Plates with High Repeatability Kinematic Positioning
Compatible with all with TECHSPEC Stages

Post Holders

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

Top Seller

English & Metric Post Holders
English: ¼-20 Base
Metric: M6x1 Base
Unique 3-Point Contact Design
Aluminum with Brass Inserts

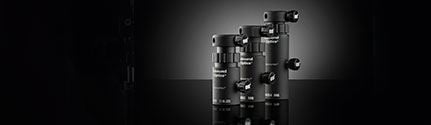

Adjustable Height Post Holders

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

English and Metric Versions
¼-20 Base for English Version and M6 x 1 Base for Metric Version
Provides Vertical Translation
Compatible With 0.5" (12.7mm) Posts

Post Collar

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

Locks Post Height Without Removing Post
Allows Basic Post Rotation
For Our 0.5" (12.7mm) Diameter English and Metric Posts
Aluminum Collar

English Rotating Adapter Plate

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

Ideal for use with Post and Post Holder Applications
Features ¼-20 Male/Female Threads
Rotates 360° and Includes Locking Set Screw

Post Holder Assemblies

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

2" Post Holder Plus Slotted Base
Two Options for Our Most Popular Slotted Bases

English Post Pivot Base

Slot Adjustment Range of 1.00"

English and Metric Magnetic Bases

English and Metric Versions Available
Includes Component Mounting Plate

Height Adjustment Platforms

Large 200mm x 120mm Size Plate Set
20mm Diameter Stainless Steel Posts with Male and Female M6 Threads
Use with Lab Jacks to Extend Working Surface

Low Profile Magnetic Bases

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

On/Off Magnet for Easy Placement on Lab Bench
Low Profile 20mm Height
Compatible with TECHSPEC Stages

90° Flip Mount

25.4mm Mount Thickness Maintains Simple and Consistent Mounting Heights
<100µrad Angular Repeatability
Available with English or Metric Mounting Threads

45° Mounting Adapters

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

Fixed 45 Degree Mounting
3 Options for Different Offsets
Aluminum Mount

Right Angle Post Clamps

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

Basic Building Block for Optical Systems
Fixed Options for Mounting 12.7mm to 12.7mm or 12.7mm to 12.0mm Posts Available
Rotatable Option for 12.7mm to 12.7mm Posts
Aluminum Mount Construction

Ring Mounts

For Mounting 25mm or 30mm Dia. of Aluminum Tubes/Mounts
¼-20 Mounting Hole for Post Mounting Applications
Used for Mounting Cylindrical Components

Tie-Down Table Clamp

Slot Adjustment Range of 1.00"

Thread Adapters

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

Top Seller

Stainless Steel Thread-to-Thread Adapters
Interchangeable with Post Adapter Studs
Can use on Top or Bottom of Posts

Articulating Arm Mounting Systems

Mount and Set in Unique Orientations
Mix and Match for Custom Mounting Combinations
Lockable Angular Positioning

Rack and Pinion Focusing Mounts for Imaging Systems

Coarse or Fine Motion Available
Thru Holes for Integrating Lenses
¼-20 Stud for Mounting Cameras
Imaging System Bases, Stainless Steel Posts, and Accessories also Available

Stainless Steel Posts for Imaging Systems

Posts for Integration into Imaging Systems
Vertical Posts Thread to Bases and Platforms
Horizontal Arms Thread to Posts and Microscope Head Mounts
Rack and Pinion Focusing Mounts, and Accessories also Available

#12-637: Universal Breadboard Adapter for ¾" Posts

Imaging System Bases

Variety of Bases Available
Stand-Alone or Benchtop Compatible Bases
Designed for Use with 0.75" Stainless Steel Posts
Rack and Pinion Focusing Mounts, and Accessories also Available

Rotatable Angle Bracket and Post Clamp

TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

Component Positioning at Arbitrary Angles
Compatible with ¾" Posts for English Breadboards
Ideal for Mounting Video Cameras and Lenses
Both Horizontal and Vertical Rotation

Accessories for Imaging Systems

Swivel Arm for Added Flexibility
90° Angle Mounts Connect Horizontal Arms onto Vertical Posts
Ring Mounts for Increased Versatility
Imaging System Bases, Rack and Pinion Focusing Mounts, and Stainless Steel Posts Also Available

Boom Stands

Standard, Ball Bearing, and Articulating Arm Styles
Mounting Adapters Sold Separately
Nine Possible Combinations of Boom Stands and Mounts Available

Boom Stand Mounting Adapters

Standard and Deluxe Versions Available
¼-20 Mounting
Compatible with our Most Popular Line of Boom Stands

Universal Right Angle Brackets

Universal Design Works With Metric and English Bench Plates and Breadboards
Uses Standard ¼-20 or M6 Socket Head Cap Screws
Black Anodized Aluminum Construction

90° Angle Brackets

Metric, English and Common Slotted Versions
Standard ¼-20 or M6 x 1.0 Holes/Slots or AllSlots
Large and Small Sizes
Black Anodized Aluminum Construction

Z-Axis Brackets for Ball Bearing Stages

Combine Ball Bearing Stages into 3 Axis Positioning Systems
Designs for 1.25, 1.75, 2.62, and 5" Stages
Aluminum Construction with Black Anodized Finish

Threaded Base Plates

Two Size Options
Two Platform Options: English or Metric
English: Four #8-32 holes on½” Square and Four ¼-20 Holes on 1" Square
Metric: Four M4 x 0.7 holes on 12.5mm Square and Four M6 x 1 Holes on 25mm Square
Anodized Aluminum Construction
