10mm NIR I Hypotenuse, BBAR Right Angle Prism

Broadband Anti-Reflection Coated Hypotenuse Prism

Broadband Anti-Reflection Coated Hypotenuse Prism

Stock #34-407
€90.00
×
Qty 1-5
€90.00
Qty 6+
€69.50
Volume Pricing
Request Quote
Length of Legs (mm):
10.0
Length of Hypotenuse (mm):
14.1
Coating:
NIR I (600-1050nm)
Beam Deviation (arcsec):
±15
Bevel:
Protective bevel as needed
Dimensional Tolerance (mm):
+0/-0.1
Image Orientation:
Left-Handed
Ray Deviation (°):
90.00
Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More
Surface Flatness:
λ/8
Surface Quality:
40-20
Type:
Right Angle Prism
Wavelength Range (nm):
350 - 2200

Regulatory Compliance

RoHS 2015:
Reach 211:

Product Family Description

  • Single Axis Retroreflector
  • Right-Handed Image
  • VIS and NIR Options Available

TECHSPEC® BBAR (Broadband Anti-Reflection) Coated Hypotenuse Right Angle Prisms are ideal for applications that require a single axis retroreflector. These prisms feature coating options that cover the visible and near-infrared spectrum, as well as tight angular tolerances. These TECHSPEC® BBAR Coated Hypotenuse Right Angle Prisms are also available in custom sizes.

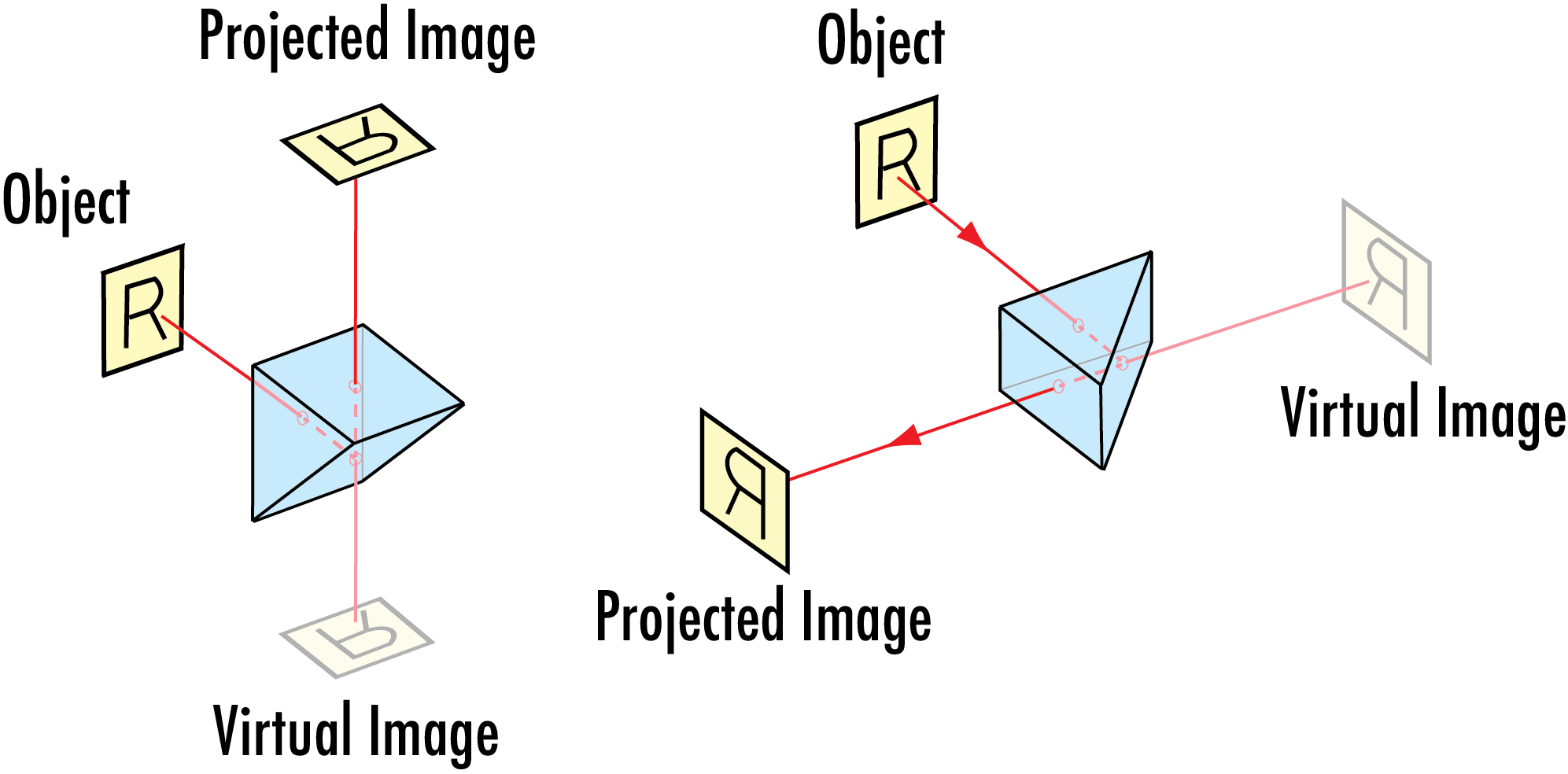

Right Angle Prism Ray Path
Right Angle Prism Ray Path
Right Angle Prism Ray Path
Right Angle Prism Ray Path
Right Angle Prism Tunnel Diagram
Right Angle Prism Tunnel Diagram
Right Angle Prism Tunnel Diagram
Right Angle Prism Tunnel Diagram
