Name: 12.5 x 12.5mm, 50R/50T, AR Coated Plate Beamsplitter
SKU: 13-399
Price: €46,00

12.5 x 12.5mm, 50R/50T, AR Coated Plate Beamsplitter

Stock #13-399

- +

€46,00

Qty 1-9
€46,00

Qty 10+
€32,70

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Coating Specification:

Surface 1: Dielectric, ±5% R/T @ 550nm
Surface 2: AR λ/10 MgF2 @ 550nm

Construction:

Plate

Dimensional Tolerance (mm):

±0.38

Dimensions (mm):

12.50 x 12.50

Edges:

Cut

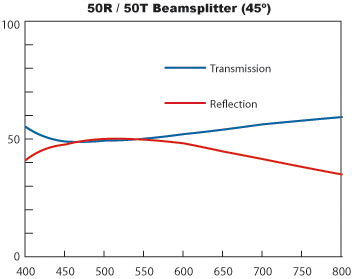

Reflection/Transmission Ratio (R/T):

50/50

Float Glass

Surface Flatness (P-V):

4 - 6λ

Surface Quality:

80-50

Thickness (mm):

1.00

Type:

AR Coated Beamsplitter

Wavelength Range (nm):

400 - 700

Regulatory Compliance

RoHS 2015:

Compliant

Reach 223:

Compliant

Certificate of Conformance:

View

Product Family Description

Low Cost Design
Multiple Sizes Available
Many Beamsplitting Ratios Available

Our Plate Beamsplitters are available in a variety of configurations to meet a variety of application needs. Many are available with an anti-reflection (AR) coated second surface to enhance each beamsplitter’s overall efficiency and to prevent unwanted ghost reflections. For custom sizes or alternate reflection/transmission ratios, please contact our
Sales Department.
