Name: 25.4mm Optic Dia., 13mm Max Optic Thickness, Optic Mount
SKU: 64-562
Price: €29,00

25.4mm Optic Dia., 13mm Max Optic Thickness, Optic Mount

Optic Component Mounts

Stock #64-562

- +

€29,00

Qty 1-9
€29,00

Qty 10+
€26,10

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Type:

Fixed

Type of Optics:

Circular

Size of Compatible Optics (mm):

25.4

Clear Aperture CA (mm):

22.0

Thickness of Compatible Optics (mm):

13.0

Outer Diameter (mm):

45.0

Thickness (mm):

19.00

Construction:

Black Anodized Aluminum

Compatible Post:

M6 x 1.0, ¼-20

Regulatory Compliance

RoHS 2015:

Compliant

Certificate of Conformance:

View

Reach 233:

Compliant

Product Family Description

Simple Mounting Arrangement
Metric and English Configurations
Black Anodized Aluminum Construction
Posts and Post Holders Required for Mounting

Fixed optical mounts are designed to hold our lenses, filters, mirrors and other optical components. The included retainer ring securely holds the component in place. Posts and post holders are required for mounting to a breadboard. Mounts accept both English (¼-20) and Metric (M6) standard posts.

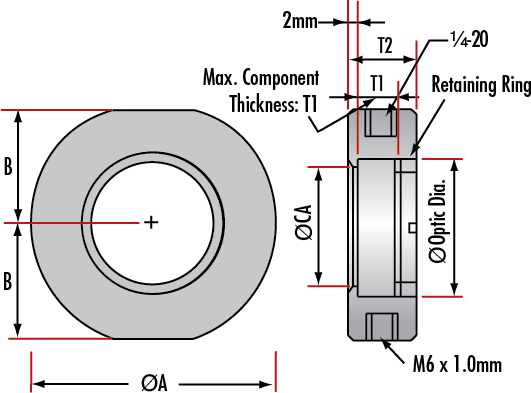

Maximum Optic Diameter	Clear Aperture (CA)	Mount Diameter A	B	Maximum Optic Thickness T1	Mount Thickness T2	Stock No.
5	4	30	13.5	5.7	12	#64-551
6	5	30	13.5	5.7	12	#64-552
9	6	30	13.5	6	12	#64-553
10	7	30	13.5	6	12	#64-554
12	9	35	16.0	10	16	#64-555
12.7	9.5	35	16.0	10	16	#64-556
15	12	35	16.0	10	16	#64-557
18	15	40	19.0	12	18	#64-558
20	17	40	19.0	12	18	#64-559
25	22	45	21.5	10	16	#64-560
25.4	22	45	21.5	10	16	#64-561
25.4	22	45	21.5	13	19	#65-562
30	26	50	24.0	6	12	#64-563
30	26	50	24.0	12	18	#64-564
38.1	34	60	29.0	12	18	#64-565
40	36	60	29.0	12	18	#64-566
50	46	70	34.0	12	18	#64-567
50	46	70	34.0	18	24	#64-568
50.8	46	70	34.0	12	28	#64-569
76.2	71	100	49	20	26	#64-570
