Visualizar los 18 productos de esta familia.

25mm Diameter x 40mm FL, Uncoated, Plastic Aspheric Lens

Stock #66-010
€29,50
Cant. 1-5
€29,50
Cant. 6-25
€23,60
Cant. 26+
Pida una Oferta

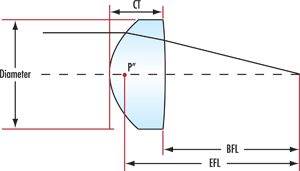

Diameter (mm):
25.00 +0.00/-0.10
Effective Focal Length EFL (mm):
40.00
Numerical Aperture NA:
0.31
Back Focal Length BFL (mm):
37.09
Focal Length Specification Wavelength (nm):
587.60
Center Thickness CT (mm):
4.80
Center Thickness Tolerance (mm):
±0.20
Coating:
Uncoated
Substrate:
Zeonex E48R
Clear Aperture CA (mm):
23.00
Surface Quality:
80-50
Edge Thickness ET (mm):
1.02
Centering (arcmin):
≤5
f/#:
1.6
Operating Temperature (°C):
-30 to 70
Type:
Aspheric Lens
Wavelength Range (nm):
350 - 1100

Product Family Description

  • Full Prescription Data Available
  • Standard 25mm Diameter for Easy System Integration
  • High Numerical Aperture Designs for Superior Light Collection

Our TECHSPEC® Plastic Aspheric Lenses offer a lightweight alternative to glass spherical or aspherical lenses. Featuring a standard 25mm Diameter, the lenses offer exceptional performance and value. The Zeonex E48R substrate features low haze, low autofluorescence, and excellent coating adhesion, making these lenses ideal for OEM and research applications alike. For alternate designs or custom coating requirements, please contact our Sales Department.
