TECHSPEC^® components are designed, specified, or manufactured by Edmund Optics. Learn More

30mm Dia., 1mm Thick, Uncoated, B270 Window

Name: 30mm Dia., 1mm Thick, Uncoated, B270 Window
Brand: TECHSPEC
SKU: 17-166
Price: €36,50

See More by SCHOTT Optical Components

Stock #17-166 Other Coating Options

- +

€36,50

Qty 1-5
€36,50

Qty 6+
€29,20

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Abbe Number (v_d):

58.3

Bevel:

Protective as needed

Clear Aperture CA (mm):

27.00

Diameter (mm):

30.00 +0.00/-0.25

Thickness (mm):

1.00 ±0.10

Coating:

Uncoated

Coefficient of Thermal Expansion CTE (10^-6/°C):

9.4 (+20 to +300°C)

Density (g/cm³):

2.56

Edges:

Fine Ground

Index of Refraction n_d:

1.523

Knoop Hardness (kg/mm²):

500

Poisson's Ratio:

0.22

Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More

B270

Surface Flatness (P-V):

1λ (per 25.4mm Dia. within CA)

Surface Quality:

60-40

Type:

Protective Window

Wavelength Range (nm):

360 - 2700

Young's Modulus (GPa):

71.5

Regulatory Compliance

RoHS 2015:

Compliant

Reach 224:

Compliant

Certificate of Conformance:

View

Product Family Description

Large Selection of Sizes

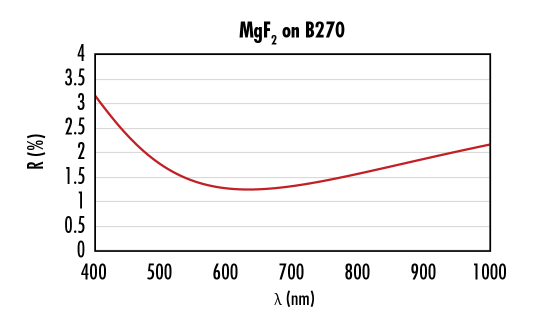

Available Uncoated or with a MgF₂ Anti-Reflection Coating
Custom Sizes Available for Volume OEM Requirements

TECHSPEC® B270 Windows are ideal for commercial applications requiring a thin substrate. Available uncoated or with a MgF₂ Anti-Reflection coating, these windows are often used as a protective element between two environments. Custom sizes and coatings are available for OEM applications.
