Name: 50mm, AL & VIS 0° Coated, N-BK7 High Tolerance RA Prism
Brand: TECHSPEC
SKU: 65-932
Price: €250,00

50mm, AL & VIS 0° Coated, N-BK7 High Tolerance RA Prism

N-BK7 High Tolerance Right Angle Prisms

Stock #65-932

- +

€250,00

Qty 1-5
€250,00

Qty 6+
€200,00

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Angle Tolerance (arcsec):

±15

Coating:

VIS 0° & Aluminized

N-BK7

Surface Quality:

40-20

Type:

Right Angle Prism

Dimensional Tolerance (mm):

+0/-0.1

Bevel:

Protective bevel as needed

Length of Hypotenuse (mm):

70.70

Length of Legs (mm):

50.00

Typical Energy Density Limit:

Hypotenuse: 0.3 J/cm² @ 532nm & 1064nm, 10ns
Legs: 5 J/cm² @ 532nm, 10ns

Image Orientation:

Left-Handed

Coating Specification:

Hypotenuse: R_avg >85% @ 400 - 700nm, R_avg >90% @ 400 - 2000nm
Legs: R_avg ≤0.4% @ 425 - 675nm

Ray Deviation (°):

Wavelength Range (nm):

425 - 675

Surface Flatness (P-V):

λ/8

Hypotenuse: 0.3 J/cm² @ 532nm & 1064nm, 10ns
Legs: 5 J/cm² @ 532nm, 10ns

Regulatory Compliance

RoHS 2015:

Compliant

Reach 224:

Compliant

Certificate of Conformance:

View

Product Family Description

Ray Deviation of 90°
Left Handed Image
Low Arcsecond Angle Tolerance
Additional Right Angle Prism Options Available

Right angle prisms are generally used to bend image paths or redirect light at 90°. This produces a left handed image and depending on the orientation of the prism, the image may be inverted or reverted. Right angle prisms can also be used in combination for image/beam displacement. TECHSPEC® N-BK7 High Tolerance Right Angle Prisms feature low arcsecond angle tolerance and are made from precision N-BK7 for use in a variety of visible light applications.

50mm, AL & VIS 0° Coated, N-BK7 High Tolerance RA Prism

Regulatory Compliance

Product Family Description

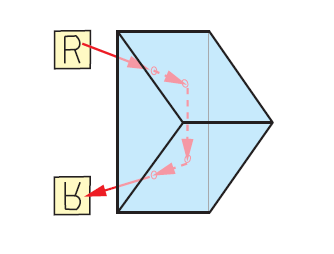

Right Angle Prism Ray Path

Right Angle Prism Ray Path

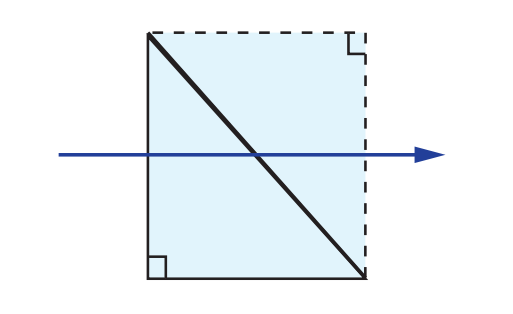

Right Angle Prism Tunnel Diagram
