Name: 50mm Dia. 266nm Laser V-Coat, λ/20 Fused Silica Window
Brand: TECHSPEC
SKU: 65-866
Price: €263,00

Angle of Incidence (°):

Bevel:

Protective as needed

Clear Aperture CA (mm):

45.00

Coating:

Laser V-Coat (266nm)

Coating Specification:

R_abs <0.25% @ 266nm

Diameter (mm):

50.00 +0.00/-0.10

Thickness (mm):

3.00 ±0.10

Damage Threshold, Pulsed:

3 J/cm² @ 266nm, 20ns, 20Hz

Design Wavelength DWL (nm):

266

Parallelism (arcsec):

≤5

Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More

Fused Silica Excimer Grade (Corning 7980 KrF)

Fused Silica Grade:

7980 KrF 0A

Surface Quality:

10-5

Transmitted Wavefront, P-V:

λ/20

Type:

Laser Line Window

Young's Modulus (GPa):

Coefficient of Thermal Expansion CTE (10^-6/°C):

0.52 (+5 to +35°C)
0.57 (0 to +200°C)
0.48 (-100 to +200°C)

Density (g/cm³):

2.20

Index of Refraction n_d:

1.458

Poisson's Ratio:

0.16

Abbe Number (v_d):

67.8

Edges:

Fine Ground

2 J/cm² @ 10ns

Regulatory Compliance

RoHS 2015:

Compliant

REACH 201:

Compliant

Certificate of Conformance:

View

Product Family Description

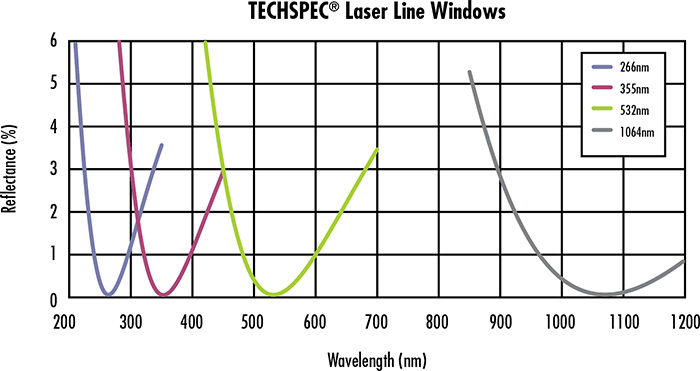

R < 0.25% for 266nm, 355nm, 532nm or 1064nm
Low Auto-Fluorescence
Damage Thresholds up to 10 J/cm² @ 10ns @ 1064nm

TECHSPEC® λ/20 High Power Laser Line Windows feature a high efficiency, high damage threshold V-coating to maximize transmission at the design wavelength. Damage thresholds ranging from 2 - 10J/cm² allow for easy integration into most Nd:YAG laser systems. The coating is deposited on a precision excimer grade UV grade fused silica substrate for excellent thermal stability, low wavefront distortion, and ultra-low auto-fluorescence. For custom options or wedged versions, please contact our Sales Department.
