Name: 50mm VIS, Polarizing Cube Beamsplitter
Brand: TECHSPEC
SKU: 65-603
Price: €975,00

50mm VIS, Polarizing Cube Beamsplitter

TECHSPEC® Broadband Polarizing Cube Beamsplitters

Stock #65-603

- +

€975,00

Qty 1-5
€975,00

Qty 6+
€764,00

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Beam Deviation (arcmin):

±3

Clear Aperture (%):

Coating Specification:

R_avg <0.5% @ 420 - 680nm

Construction:

Cube

Dimensions (mm):

50.0 x 50.0 x 50.0 ±0.1

Extinction Ratio:

500:1

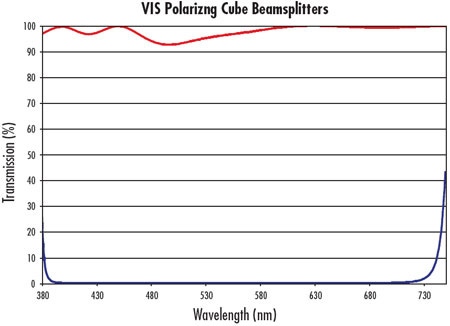

P-Polarization Transmission (%):

>90

S-Polarization Reflection (%):

>99

N-SF11

Surface Flatness (P-V):

λ/8

Surface Quality:

40-20

Type:

Linear Polarizer

Wavelength Range (nm):

420 - 680

Regulatory Compliance

RoHS:

Compliant

Certificate of Conformance:

View

Product Family Description

Visible and NIR Coating Options Offered
500:1 Extinction Ratio
AR Coated for <0.5% reflection per surface

Designed for broadband applications, TECHSPEC® Broadband Polarizing Cube Beamsplitters offer a transmission of greater than 90% for P-polarized light and a reflection efficiency of greater than 99% for S-Polarized light across the entire design wavelength range. Each beamsplitter consists of a pair of precision high tolerance right angle prisms cemented together with a dielectric coating on the hypotenuse of one of the prisms. An anti-reflection (AR) coating has been applied to each face of the beamsplitter to achieve less than 0.5% reflection per surface.
