Name: LightPath 354220 | 1310nm Alignment, 0.25 NA Fiber Collimator w/ FC/APC Connector
Brand: Lightpath®
SKU: 16-708
Price: €282,00

LightPath 354220 | 1310nm Alignment, 0.25 NA Fiber Collimator w/ FC/APC Connector

Fiber Optic Collimator and Focuser Assemblies

Stock #16-708

- +

€282,00

Qty 1-5
€282,00

Qty 6+
€207,00

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Effective Focal Length EFL (mm):

11.00 @ 633nm

Numerical Aperture NA:

0.25

D-ZK3

Coating:

BBAR (1050-1600nm)

Coating Specification:

R_abs <1.0% @ 1050 - 1600nm

Surface Quality:

40-20

Clear Aperture CA (mm):

5.50

f/#:

2.00

Bevel:

Protective bevel as needed

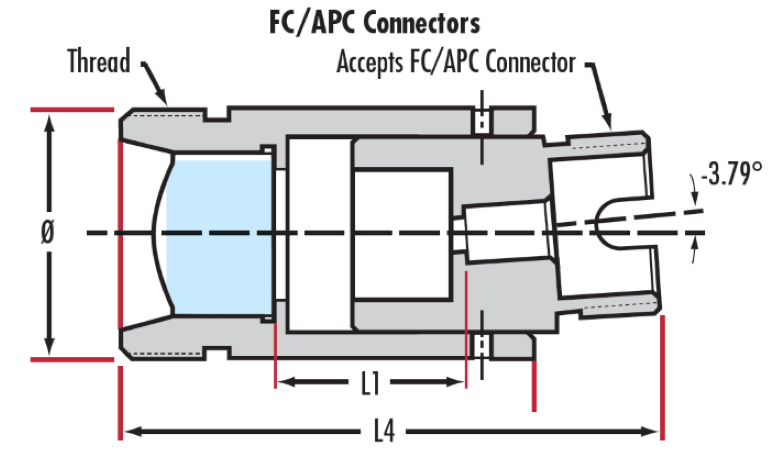

Connector:

FC/APC

Construction:

304L Stainless Steel Housing

Housing Diameter (mm):

11.00

Housing Length (mm):

22.73

Lightpath Lens Code:

354220

Mount:

M11 x 0.5

Wavelength Range (nm):

1050 - 1600

Conjugate Distance:

Infinite

Alignment Wavelength (nm):

1310

Regulatory Compliance

RoHS 2015:

Compliant

Certificate of Conformance:

View

Reach 233:

Compliant

Product Family Description

Easy to Integrate

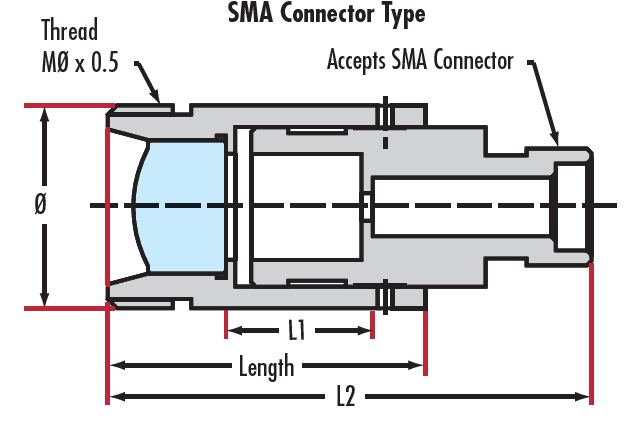

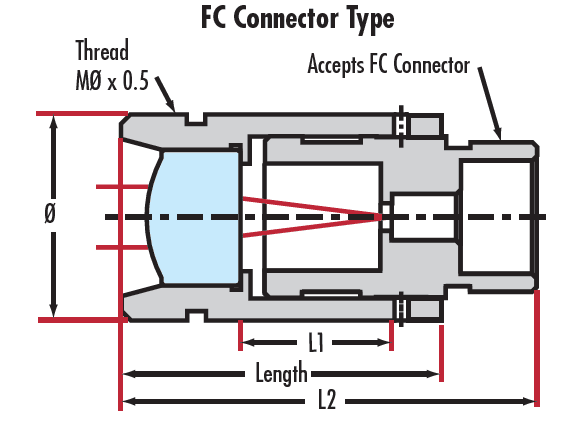

Models for FC/PC, FC/APC, and SMA Connections Available
Four Wavelength Ranges Covering 350-1600nm

LightPath® Fiber Optic Collimators are designed to collimate light exiting a fiber to a desired beam diameter or spot size or to focus light into a fiber when used in reverse. The lenses are diffraction limited, so they can achieve spot sizes down to a few microns. Lenses also feature an antireflection coating for low back reflection. LightPath® Fiber Optic Collimators are designed so that they can be used in pairs to couple the input and output light of optical devices. Optimum performance for long-term use is ensured by the factory set and tested lens alignment. Typical applications can include use with fiber coupled lasers and pigtailed receptacles, as well as communications and data transfer.
