Name: T-Mount, 60mm x 85mm Plate Mount, M6
Brand: TECHSPEC
SKU: 65-983
Price: €440,00

T-Mount, 60mm x 85mm Plate Mount, M6

Stock #65-983

- +

€440,00

Qty 1-4
€440,00

Qty 5+
€388,80

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Function:

Optic Mount (Fixed)

Type of Optics:

Rectangular

Dimensions (mm):

75.0 x 75.0 x 75.0

Extension Length (mm):

75.0

Note:

Includes four T-Mount Aperture Caps (#66-037)

Thread Type:

T-Mount

Compatible Post:

M6 x 1.0

Min. Thickness of Compatible Optics (mm):

1.0

Max. Thickness of Compatible Optics (mm):

4.73

#Length Range of Compatible Optics (mm):

84.99 - 85.01

#Width Range of Compatible Optics (mm):

59.99 - 60.01

Dimensions of Compatible Optics (mm):

60.0 x 85.0

Regulatory Compliance

RoHS:

Compliant

Certificate of Conformance:

View

Product Family Description

C, S, and T-Mount Solutions for Mounting Cube and Plate Beamsplitters, Filters, and Mirrors
Provides a 90° Mounting Interface
¼ -20 and M6 Tapped Mounting Threads for English or Metric Based Systems

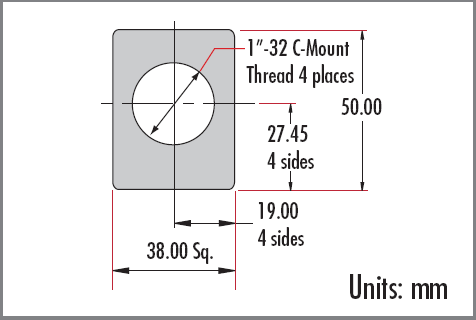

TECHSPEC® C, S, and T-Mount Cube and Plate Mounts allow for the integration of cube and plate optics into C, S, and T-Mount systems. These mounts feature four C, S, or T-Mount threaded apertures that can also act as connection points for other C, S, or T-Mount components. Either an M6 or 1/4-20 tapped hole is provided on the base for post mounting, making these mounts compatible with breadboard and benchtop systems. TECHSPEC C, S, and T-Mount Cube and Plate Mounts provide a 90° mounting interface ideal for placing beamsplitters, filters, and mirrors within a system. C, S, and T-Mount Aperture Caps are available to block light from unused openings and to protect the optic from dust and debris.

Note: #11-139 and #11-142 each include one S-Mount Aperture Cap (#11-137)
