12.7mm Dia. x 1mm High Efficiency Window

Name: 12.7mm Dia. x 1mm High Efficiency Window
SKU: 39-279
Price: €20,50

Stock #39-279

- +

€20,50

Qty 1-5
€20,50

Qty 6+
€15,75

Volume Pricing
Request Quote

+ Add to Saved List

Compare

Get Product Downloads

Angle of Incidence (°):

0

Bevel:

Protective as needed

Clear Aperture (%):

≥90

Clear Aperture CA (mm):

11.43

Diameter (mm):

12.70 ±0.76

Thickness (mm):

1.00 ±0.25

Coating:

BBAR (425-700nm)

Coating Specification:

R_avg ≤0.5% @ 425 - 700nm

Edges:

Ground

Substrate: Many glass manufacturers offer the same material characteristics under different trade names. Learn More

Float Glass

Surface Quality:

80-50

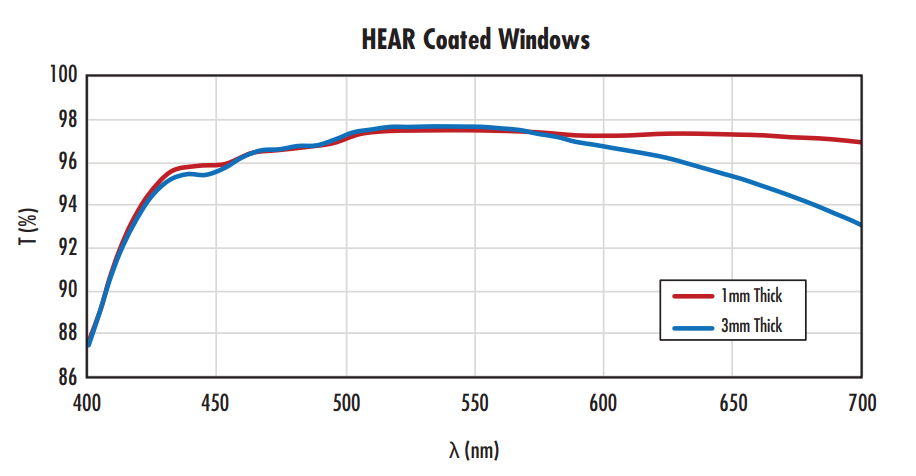

Transmission (%):

96.9 Average (typical)

Type:

Protective Window

Wavelength Range (nm):

425 - 700

Regulatory Compliance

RoHS 2015:

Compliant

Reach 224:

Compliant

Certificate of Conformance:

View

Product Family Description

High Transmission
Eliminate Back Reflections and Reduce Glare
Available in a Wide Range of Sizes

High Efficiency Anti-Reflection (HEAR) Coated Windows feature dual Broadband coatings, reducing reflectance to ≤0.5%. Back reflections are virtually eliminated by the coating, offering improved readability when used in industrial or scientific displays. Their high transmission makes them ideal for many other optical applications.

Can’t find what you need? Get a quick custom quote.

Title	Type	Stock Number	Price	Buy
12.7mm Optic Dia., Optic Mount	Fixed	#64-556	€27,00 Qty 10+ €24,30 Request Quote	3-4 days ×
5.0 - 25.0mm Optic Height, Metric Bar-Type Optic Holder	Fixed	#55-529	€93,00 Qty 10+ €83,70 Request Quote	Contact Us ×
7.0 - 40.0 Optic Height, English Bar-Type Optic Holder	Fixed	#03-676	€95,00 Qty 10+ €85,50 Request Quote	In Stock ×
10.0 - 60.0mm Optic Height, Metric Bar-Type Optic Holder	Fixed	#55-530	€101,00 Qty 10+ €90,90 Request Quote	3-4 days ×
7.0 - 67.0 Optic Height, English Bar-Type Optic Holder	Fixed	#03-669	€103,00 Qty 10+ €92,70 Request Quote	3-4 days ×
8.0 - 118.0 Optic Height, English Bar-Type Optic Holder	Fixed	#03-666	€107,00 Qty 10+ €96,30 Request Quote	3-4 days ×
4.0 - 36.0mm Optic Dia., Self-Centering Jaw Clamp	Fixed	#16-077	€141,00 Qty 5+ €124,10 Request Quote	3-4 days ×
2"/50.8mm Diameter, Bar Type Lens / Filter Holder, Quick Start Optical Mounts	Fixed	#17-530	€143,70 Request Quote	Contact Us ×
12.5/12.7mm Optic Dia., X-Y Translating Optic Mount	Adjustable - Linear (XY)	#62-955	€239,00 Qty 5+ €227,10 Request Quote	In Stock ×
5.0 - 100.0mm Optic Dia., Self-Centering Jaw Clamp	Fixed	#16-078	€367,00 Qty 5+ €323,70 Request Quote	3-4 days ×
12.5/12.7mm Optic Dia., Precision Gimbal Mount	Adjustable - Gimbal	#84-640	€385,00 Qty 5+ €346,50 Request Quote	In Stock ×
12.5/12.7mm Optic Dia., X-Y-Z Translating Optic Mount	Adjustable - Linear (XYZ)	#62-958	€393,00 Qty 5+ €373,40 Request Quote	3-4 days ×
